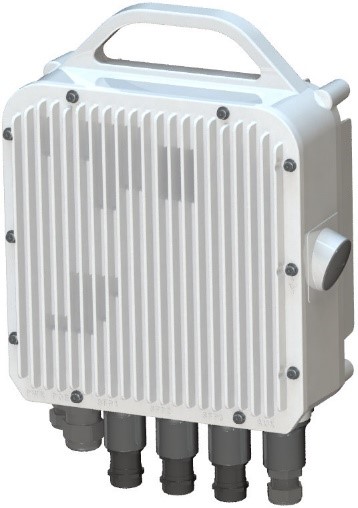

LinX-DT
is a dual-transceiver all outdoor, IP radio operating from 6GHz to 42GHz, modulations to 4096QAM, and ultra- wide bandwidth operation to 112MHz ETSI and 160MHz ANSI. NAVIGATOR DT can achieve capacities up to 4Gbps per radio and even higher capacities with compression enabled or when operating in high capacity mode.
Each LinX-DT
transceiver supports stacked dual sub-carriers resulting in up to four stacked sub-carriers per radio to increase capacity without requiring any additional equipment.
LinX-DT
also includes XPIC and MIMO frequency re-use technologies to double and quadruple capacity using a single licensed channel. XPIC and 2+0 operation are supported using just a single radio. Built-in Radio Link Aggregation (RLA) seamlessly combines traffic from multiple carriers to simplify customer networking.
LinX-DT
is easily and inexpensively field convertible to different sub-bands via user friendly customer replaceable diplexers. Sparing only needs to include the base radio resulting in no longer a need to spare radios in specific sub-bands.
LinX-DT
is an ideal, highly integrated all-outdoor radio for the most demanding applications.
Dual transceiver LinX-DT
can include a built-in OMT orcoupler to combine channels to a single antenna port.

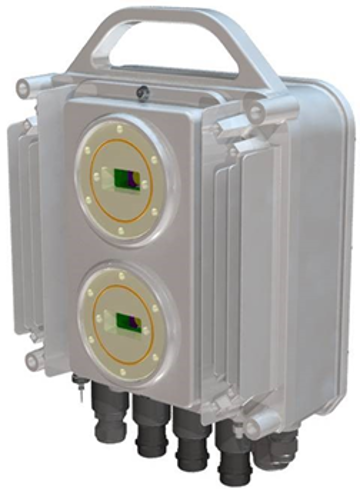

LinX-DT
is optionally available with two waveguide ports to support single chassis diversity, ring protection, and repeater configurations.
LinX-DT
Performance
Up to 4Gbps per radio using stacked quad sub- carriers (higher capacity available with compression enabled or when operating in High Capacity Mode)
Dual transceivers with each transceiver supporting single carrier or stacked dual sub-carrier operation to efficiently increase capacity without adding any more equipment
QPSK to 4096QAM
Ultra wide bandwidth operation to 160MHz ANSI and 112MHz ETSI
2x (1+0), 1+1 HSB, 2+0, 2+2 HSB, 2x(2+0 XPIC), and 4+0 operation
XPIC supported using a single dual transceiver radio
LOS 4x4 MIMO to quadruple capacity and 2x2 MIMO to double capacity using only a single license
Built-in Radio Link Aggregation(RLA) seamlessly combines radio traffic across multiple carriers
Space Diversity and Frequency Diversity available
Built-in Advanced Digital Pre-Distortion to drive higher transmission performance
Customer replaceable diplexers to ease operational logistics and improve system flexibility
Built-in OMT or coupler to combine carriers from each transceiver
Different frequencies supported in single dual carrier radio(e.g. 6GHz and 11GHz)
Adaptable antenna interface supports third party antennas to ease migration and upgrade
Header and payload compression to further increase capacity
2x 10GbE Ethernet interfaces(optional)
2x CPRI interfaces(optional)
SyncE and IEEE1588v2
AES256 encryption
No-touch WiFi maintenance interface(optional)
Time based feature license available
LinX-DT
Applications
Whatever your business or the goals for your network infrastructure, EtherFlex LinX-DT
can play a critical role in backhaul performance, reliability, and security.
4G/5G backhaul
Fiber extension
Fiber backup
Leased line replacement
Small cell backhaul
Campus connectivity
Disaster recovery
