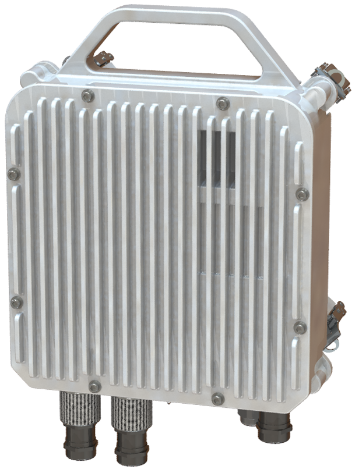

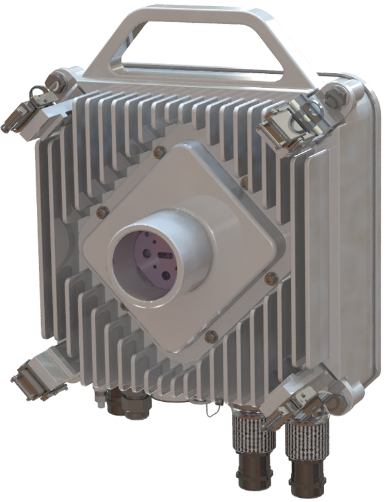

LinX-ST
Single Transceiver All-Outdoor Licensed Microwave Gigabit Radio
LinX-ST
is a single-transceiver all outdoor, IP radio system operating from 6GHz to 42GHz, modulations to 4096QAM, and ultra-wide bandwidth operation to 112MHz ETSI and 160MHz ANSI
LinX-ST
can achieve capacities up to 1.6Gbps per radio and even higher capacities with compression enabled or when operating in High Capacity Mode
LinX-ST
can operate with either a single carrier or dual stacked sub-carriers to efficiently increase capacity without requiring any additional equipment. Built-in Radio Link Aggregation (RLA) seamlessly combines traffic from multiple stacked sub-carriers to simplify customer networking.
LinX-ST
is easily and inexpensively field convertible to different sub-bands via user friendly customer replaceable diplexers. Radio sparing only needs to include the base radio resulting in no longer a need to spare radios in specific sub-bands.
LinX-ST
is an ideal, highly integrated all- outdoor radio for the most demanding applications.
LinX-ST
Performance
Up to 1.6Gbps per radio using stacked dual sub-carriers(higher capacity available with compression enabled or when operating in High Capacity Mode)
Single carrier or dual stacked sub-carrier operation to efficiently increase capacity without adding more equipment
QPSK to 4096QAM
Ultra wide bandwidth operation to 160MHz ANSI and 112MHz ETSI
1+0, 1+1 HSB, and 2+0 operation
Space Diversity and Frequency Diversity available
Built-in Radio Link Aggregation(RLA) seamlessly combines radio traffic across multiple stacked sub-carriers
Built-in Advanced Digital Pre-Distortion to drive higher transmission performance
Customer replaceable diplexers to ease operational logistics and improve system flexibility
Adaptable antenna interface option supports third party antennas to ease migration and upgrade
Header and payload compression to further increase capacity
SyncE and IEEE1588v2
AES256 encryption
No-touch WiFi maintenance interface(optional)
Time based feature license available
LinX-ST
Applications
Whatever your business or the goals for your network infrastructure, LinX-ST
can play a critical role in backhaul performance, reliability, and security.
4G/5G backhaul
Fiber extension
Fiber backup
Leased line replacement
Small cell backhaul
Campus connectivity
Disaster recovery
