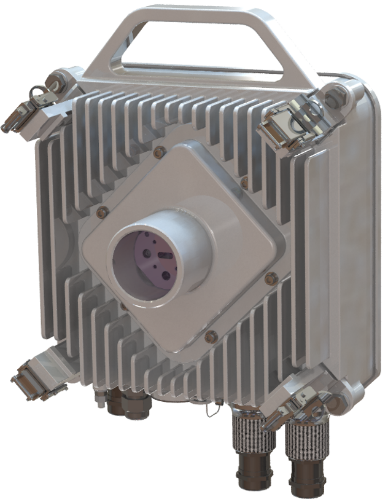

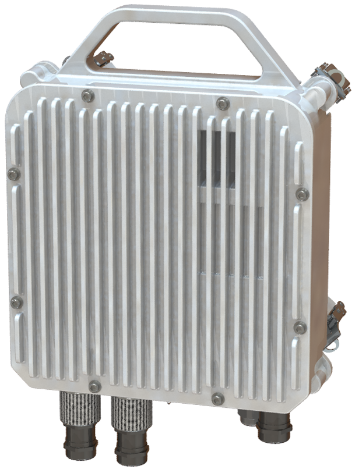

LinX-
DT
and LinX-ST
are the Advanced All-Outdoor licensed microwave systems that will give your network the power it needs TODAY along with the future growth you will WANT later.
LinX 6-42GHz Microwave Radio Systems Technology Highlights:
Built on a proprietary, custom ASICs, LinX
is available in single transceiver (ST
) and dual transceiver (DT
) configuration delivering up to 4Gbps capacity using just a SINGLE RADIO.
LinX
operates with Ultra-Wide bandwidths up to 240 MHz per carrier for the highest capacities ever achieved in an all-outdoor microwave radio.
Built-in coupler, OMT, or dual waveguide ports to allow for single chassis multi-channel, XPIC, and radio repeater configurations.
LinX's
technology also allows a single radio to support dual frequencies in a single radio chassis (e.g. 6GHz and 11GHz).
Dual or Quad stacked sub-carriers allow for up to 2x(2+0 XPIC) and repeater operation in a single radio form factor.
Advanced Ethernet interfaces including 10GbE to simplify networking and further reduce costs.
Customer replaceable diplexers.
